The K&M Wall and Ceiling Mount Concept
Product Know-How 31.03.2020
Gabriela König
CEO König & Meyer presents an innovative system of loudspeaker mounts, which consists of the following products:
-
- Speaker Wall Mount 24471 (max. load capacity: up to 15 kg)
- Speaker Wall Mount 24481 (up to 25 kg)
- Speaker Ceiling Mount 24496 (up to 25 kg)
- Inclinable stand adapter 19780 (up to 15 kg)
- Adapter 19610 (up to 25 kg)
in combination with nine different adapter panels:
panel 1 24352 to panel 6 24359 as well as four VESA panels (19615, 19616, 19617, 19718)
The mounts are all functional, very robust and versatile. Thanks to variable angle and direction adjustments, the loudspeakers can be adjusted to your needs. The loudspeaker mounts can, depending on the requirement, be used with or without the nine adapter plates. The adapter panels have specific drill hole templates (to install on the loudspeakers), dimensions and vertical and horizontal mount for various loudspeakers.

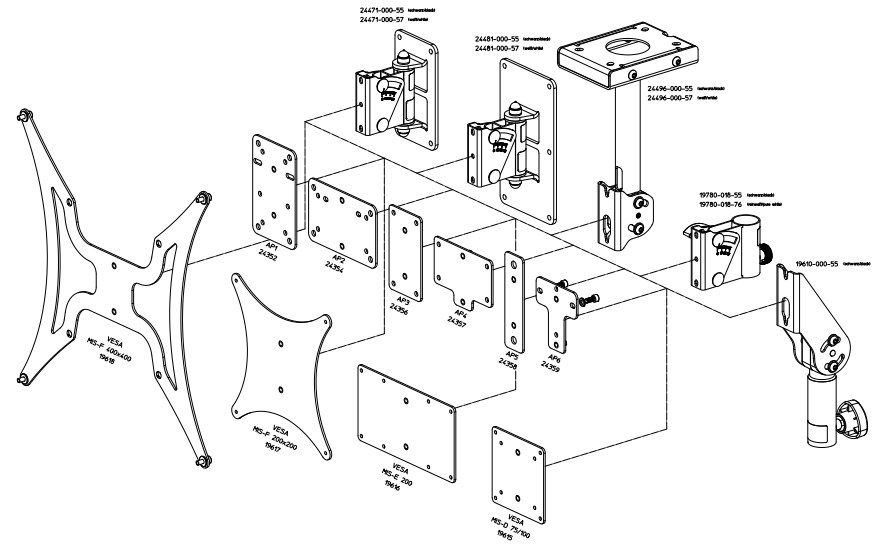

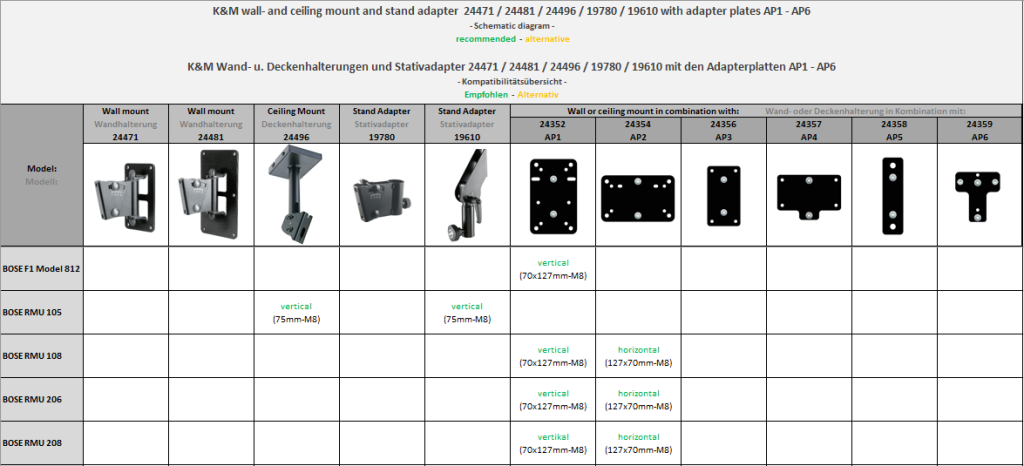

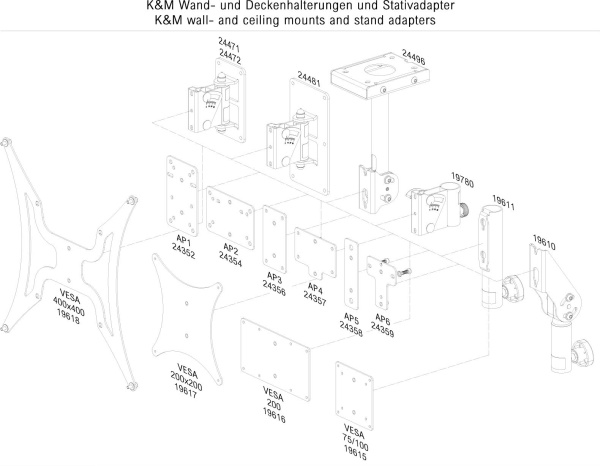

This chart illustrates the five mounts, adapter panels and drill hole templates. In addition, the loudspeaker models of individual manufacturers are listed. This provides dimension and mount plus panel direction information for the various loudspeakers.

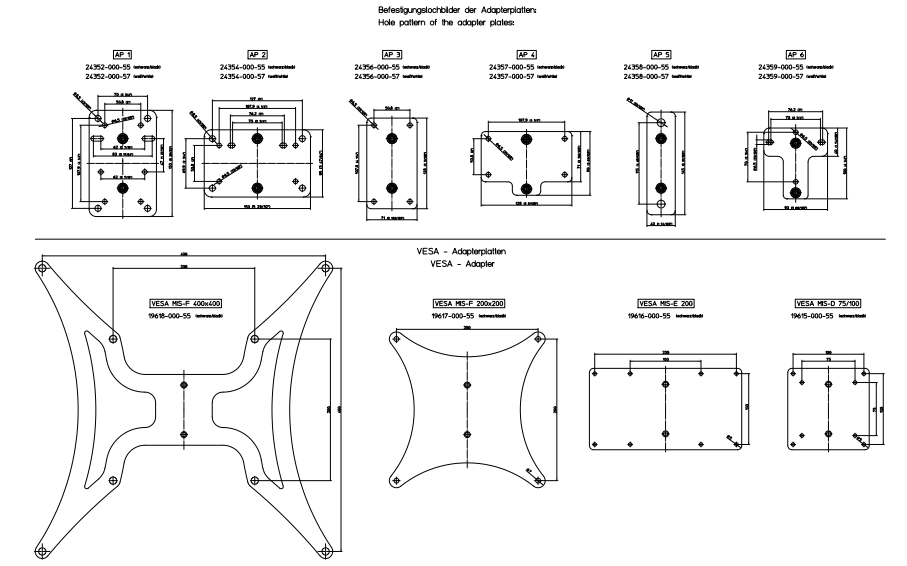

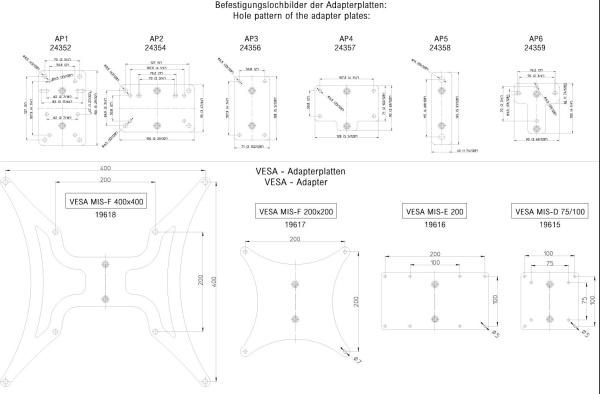

At this point in time, the list is up-to-date, however we make no claims to the completeness of the list, due to the fact that the loudspeaker industry does not adhere to any standards in this regard, but does offer a wide variety of individual solutions. But, in general, users know which drill hole template and adapter panel is needed for their loudspeakers. The exact drill hole templates for the adapter panel are provided in this Illustration.
This systems provides great advantages specifically in regard to installation, the system can be installed by one individual quickly and easily.
First the plate from the wall mount 24471 and 24481 as well as the Inclinable stand adapter 19780 is mounted separately. Then the swivel support arm, which has already been removed from the mount, is attached to the loudspeaker using the corresponding adapter panel. Then, this combination can simply be attached to the wall mount. Finally, the whole system is secured with a locking screw.
Similar to the wall mount, the Ceiling Mount 24496 as well as the Adapter 19610 is separated from the plate. Then it is screwed into the loudspeaker with or without an adapter panel. An additional feature of the mount is the internal cable management. This allows for surface or sub-surface cable installations.
All mounts and adapter panels are available in both black and white; installation material and screws are not included. With the exception of AP6, which includes loudspeaker installation screws.
Video 1: König & Meyer Speaker wall mount concept
Video 2: König & Meyer Speaker ceiling mount Concept
I am interested in your ceiling mount but not sure if you sell the adapter plates for the Sonos 1. If so what is the model number for the adapter place
Hi Mike
Unfortunately, no plate from our system fits here.
will your bracket work with JBL 8320 speakers? Which is the correct plate? What is the mount depth?
Hi Neil,
We recommend you the adapter 24352.
https://www.k-m.de/en/products/speaker-lighting-and-monitor-stands-and-holders/speaker-wall-mounts/24352-adapter-bracket-1-black
Unfortunately JBL does not specify the size of the screws. Therefore it might be necessary to enlarge the holes.
Best regards,
Fabian (K&M-Team)
Hi!
Is the 24352 compatible with the D&B E3?
Cheers
Hi Martin
According to the manual of the d&B E3, the cabinet has a mounting hole pattern of 115mm, so the K&M 24358 adapter panel 5 can be used.
Please note, that the mounting hole pattern is on the side of the cabinet!
Best regards,
K&M Team
Could the Adam A range (specifically the A5X in my case) be added to the list? Thanks
Hi,
Which ceiling mount and plate would be suitable to hang a neumann KH120?
Thanks!
Hello
Can this be used with Klipsch 502s II ??
Hey!
Unfortunately, our wall mount system is not compatible with a Klitsch 502s II…
If you have any further questions, feel free to reach out to us anytime.
Hi! Which adapter and ceiling mount would be optimal for Amphion Argon 0? I was planning a K&M 24496 ceiling mount but the adapter plate is yet unknown. Thank you!
Hi Lassi, thanks for your enquiry and sorry for the late response. As far as we can see, the Argon does not have a mounting option. This means that only our speaker wall mount 24167 will fit, unfortunately we do not have a ceiling mount. Best regards, Sandra (Team K&M)
Good evening,
Would ceiling mount fit Dali Zensor 1?
Hello,
According to our product manager, the 24166 Speaker-wall-mount-M-black should just about fit.
But you would need to try it out.
Best regards,
Jochen (K&M-Team)
