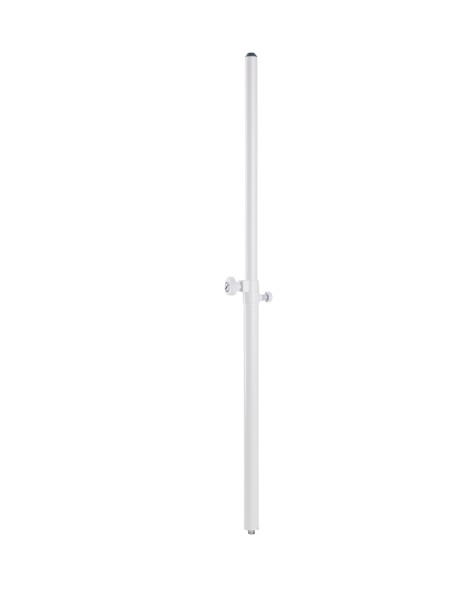

21337 Distance rod

Steel tube combination to connect satellite systems. With bottom M20 thread to attach connector plate 24116. Zero backlash and absolute vertical position. Height adjustment with spring-loaded locking screw and safety bolt. more
Product variant 21337-000-76 - pure white
  • 21337-000-76
  • 21337

Steel tube combination to connect satellite systems. With bottom M20 thread to attach connector plate 24116. Zero backlash and absolute vertical position. Height adjustment with spring-loaded locking screw and safety bolt.

Product data

Steel tube combination to connect satellite systems. With bottom M20 thread to attach connector plate 24116. Zero backlash and absolute vertical position. Height adjustment with spring-loaded locking screw and safety bolt.

EAN:

4016842827398

Weight:

2.55 kg

Height:

from 905 to 1,450 mm

Height adjustment:

spring-loaded bolt and locking screw

Material:

steel

Max. load capacity:

35 kg

Rod combination:

2-piece folding design

Special features:

for precise and vertical fit; mounting aid included

Tube end(s):

diameter 35 mm, threaded bolt M20

Type:

pure white
