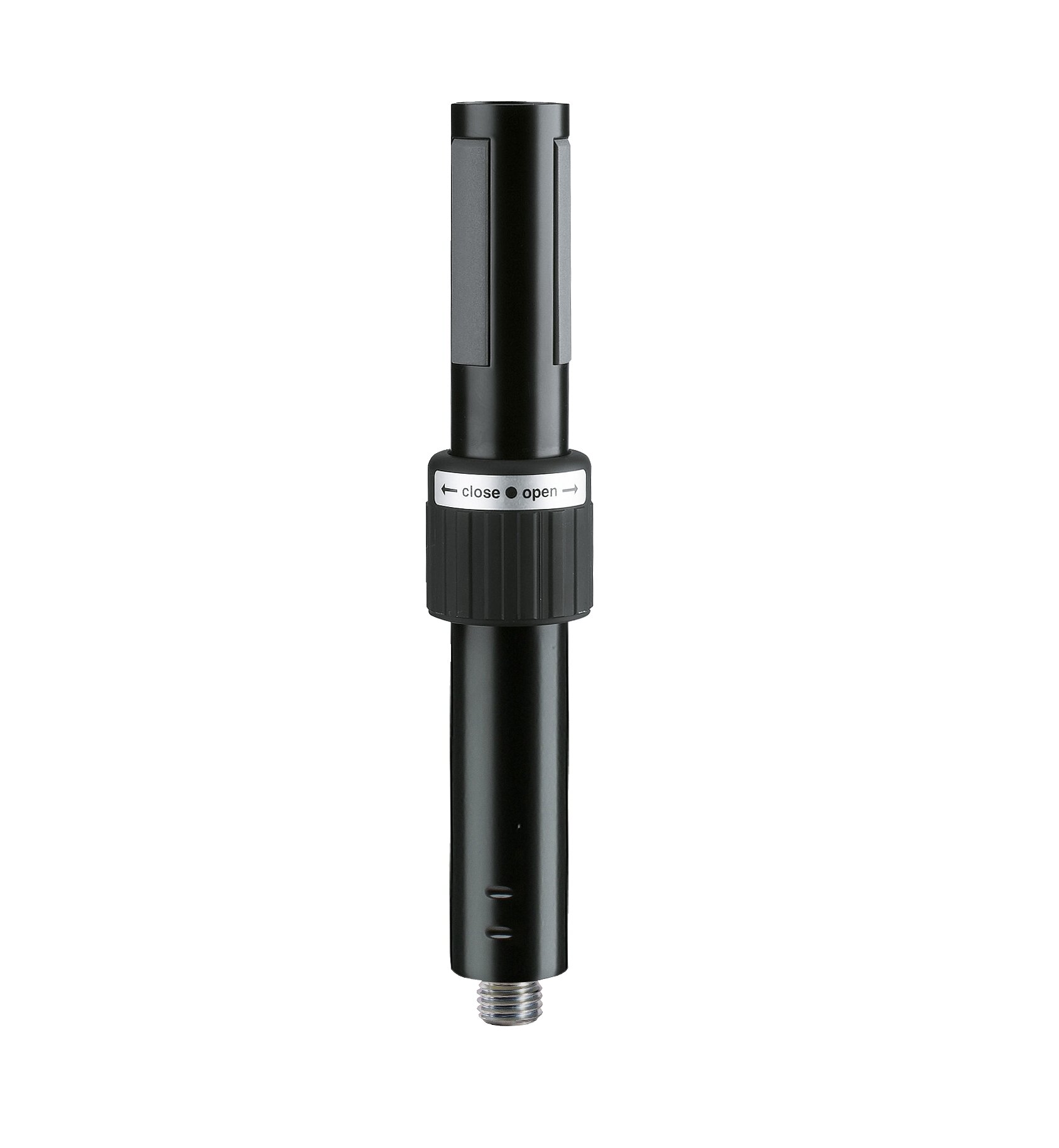

21447 Distance rod »Ring Lock«

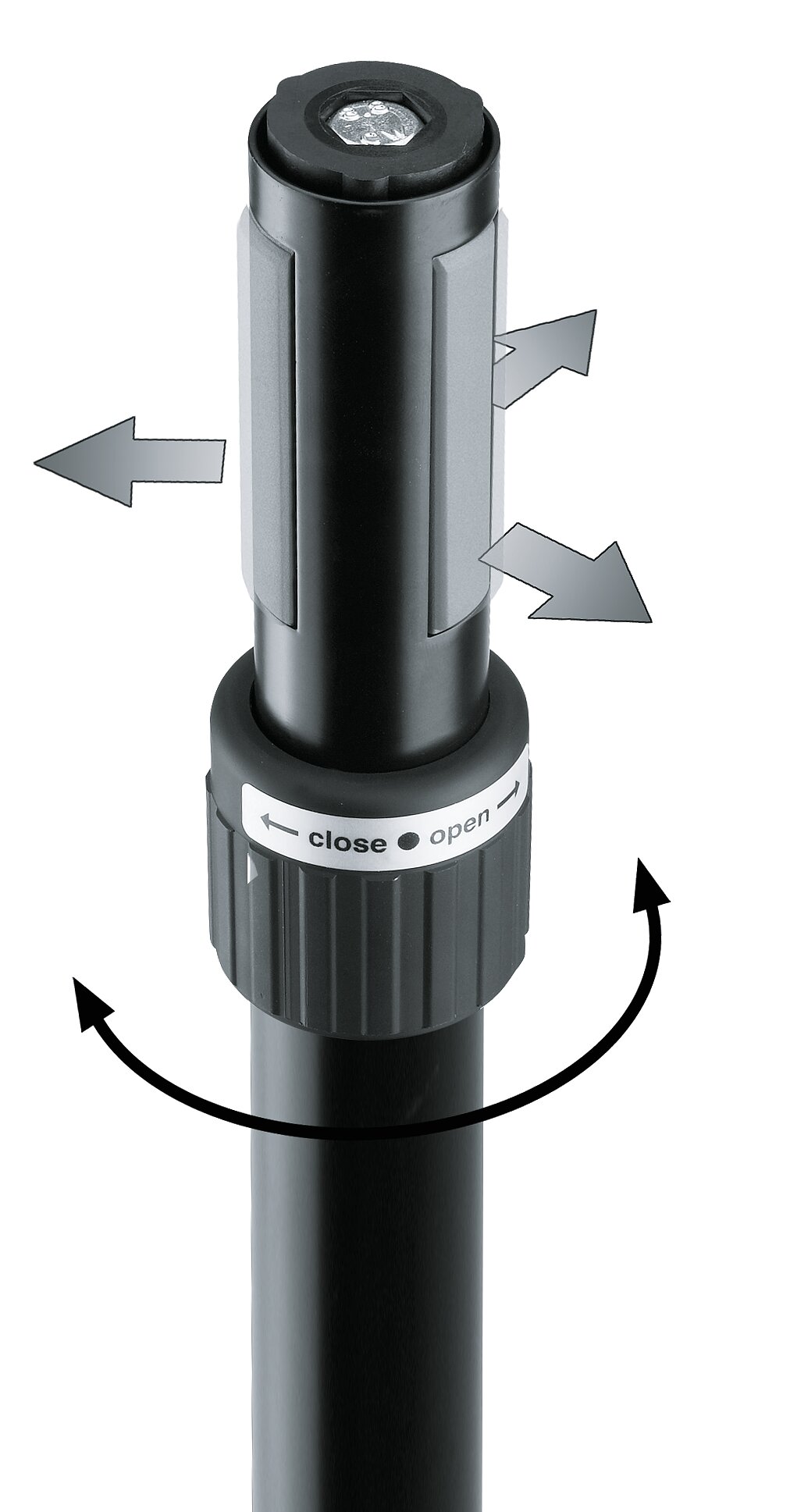

Short steel tube for connecting satellite systems. Top with unique, patented expanding mandrel for a tight and backlash-free fit of the speaker. The plastic expansion jaws ensure a low-resonance connection between speaker and tube. Easy handling by means of clamping ring. Bottom with M20 ... more
Product variant 21447-000-55 - black
  • 21447-000-55
  • 21447

Short steel tube for connecting satellite systems. Top with unique, patented expanding mandrel for a tight and backlash-free fit of the speaker. The plastic expansion jaws ensure a low-resonance connection between speaker and tube. Easy handling by means of clamping ring. Bottom with M20 threaded bolt for screwing into mounting plate 24116.

Product data

Short steel tube for connecting satellite systems. Top with unique, patented expanding mandrel for a tight and backlash-free fit of the speaker. The plastic expansion jaws ensure a low-resonance connection between speaker and tube. Easy handling by means of clamping ring. Bottom with M20 threaded bolt for screwing into mounting plate 24116.

EAN:

4016842120031

Weight:

0.63 kg

Height:

245 mm

Material:

steel

Max. load capacity:

35 kg

Tube end(s):

»Ring Lock« diameter 35 to 37 mm, threaded bolt M20

Type:

black

Special features:

patented expanding mandrel system »Ring Lock«; vibration-free connection due to moveable plastic splints; for precise and vertical fit
