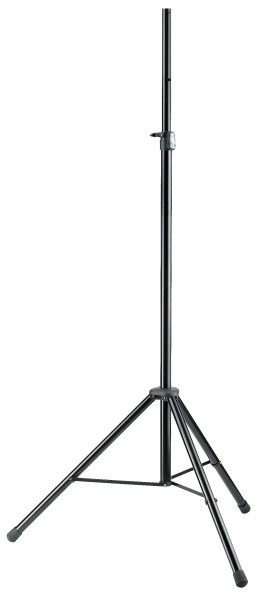

24630 Lighting stand

The standard lighting stand constructed from steel tubing has been significantly improved. The new legs with tubing diameter of 35 mm guarantee stability and safety. Lasered bore holes and durable, robust plastic saddle washers improve the coefficient of friction between the legs and braces, and ... more
Product variant 24630-009-55 - black
  • 24630-009-55
  • 24630

The standard lighting stand constructed from steel tubing has been significantly improved. The new legs with tubing diameter of 35 mm guarantee stability and safety. Lasered bore holes and durable, robust plastic saddle washers improve the coefficient of friction between the legs and braces, and prevent scratching of the finish. A compact clamp with a push-button system affords user-friendly stand height adjustment. The locking screw provides additional stability. The integrated M10 thread adaptor can be used to attach the crossbars 213/9 and 21393.

Product data

The standard lighting stand constructed from steel tubing has been significantly improved. The new legs with tubing diameter of 35 mm guarantee stability and safety. Lasered bore holes and durable, robust plastic saddle washers improve the coefficient of friction between the legs and braces, and prevent scratching of the finish. A compact clamp with a push-button system affords user-friendly stand height adjustment. The locking screw provides additional stability. The integrated M10 thread adaptor can be used to attach the crossbars 213/9 and 21393.

Base diameter:

1,260 mm

EAN:

4016842818280

Weight:

7.11 kg

Height:

from 1,955 to 2,915 mm

Height adjustment:

locking screw with push-button system

Leg construction:

tube legs with cross braces

Material:

steel

Max. load capacity*:

20 kg

Number of legs:

3

Quality level:

Topline

Rod combination:

2-piece folding design

Size when folded:

1,600 mm

Tube end(s):

diameter 35 mm, integrated threaded bush M10 for crossbars

Type:

black

* With centric loading, on a horizontal surface and without lateral forces (wind, shocks etc.)
