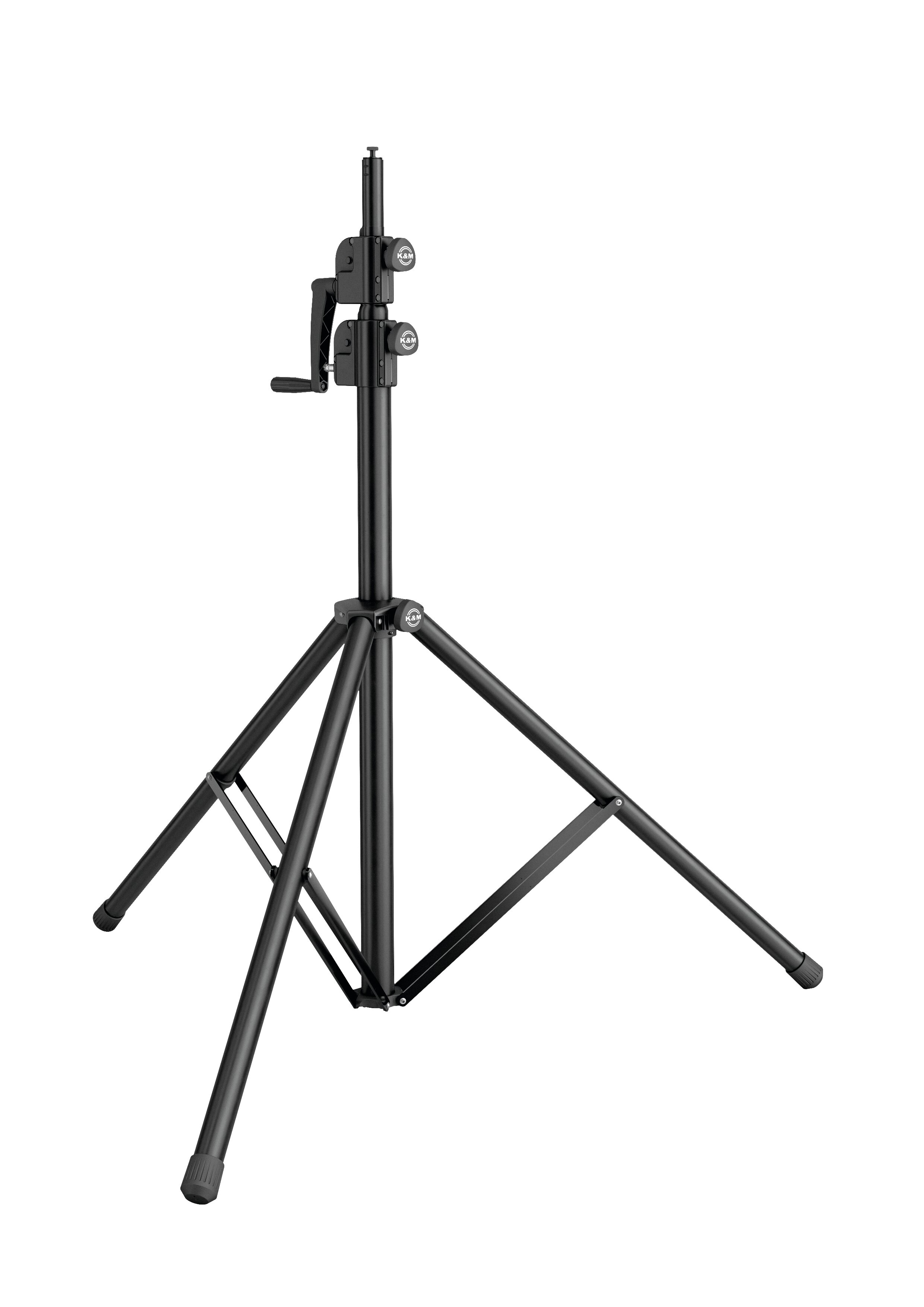

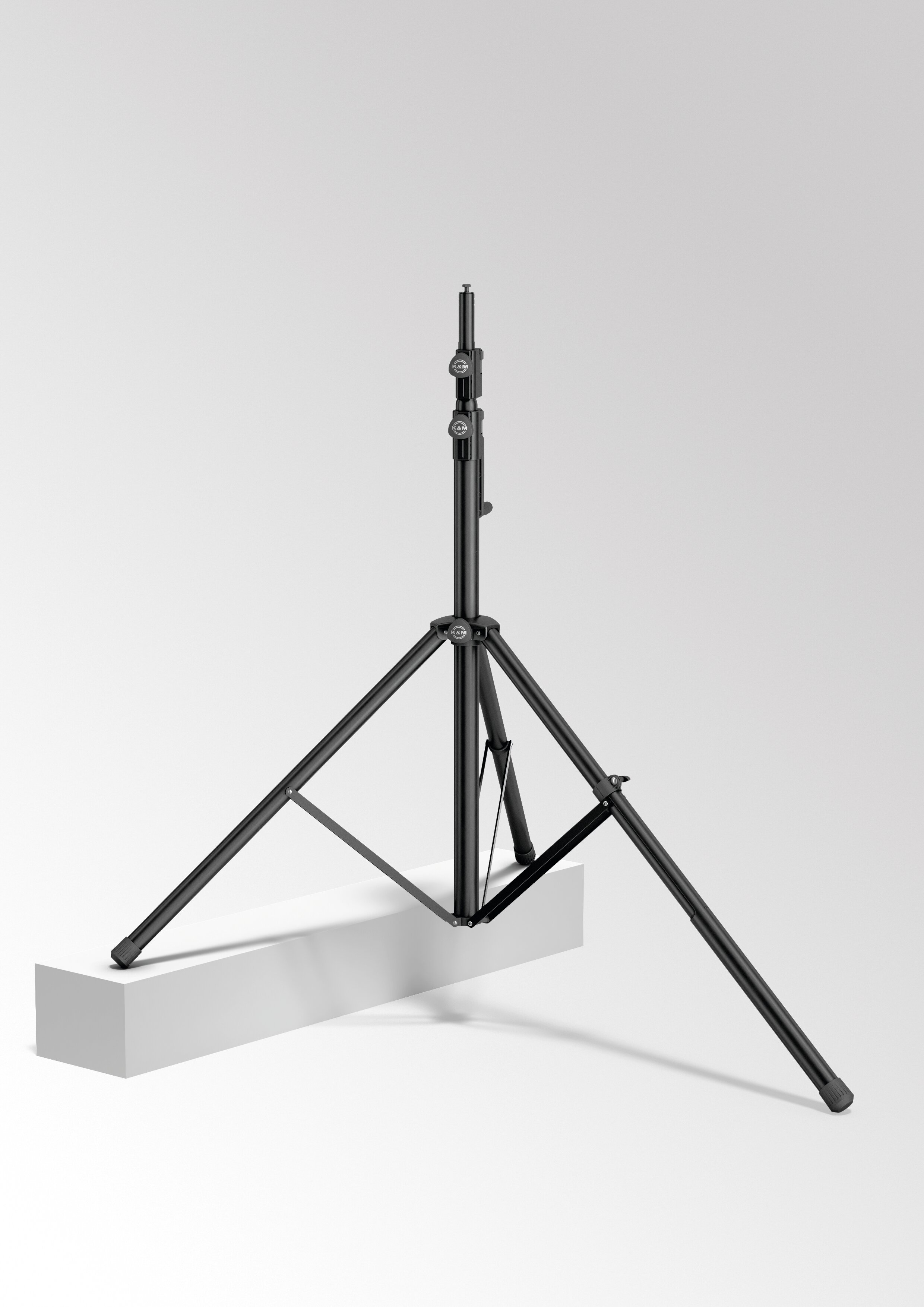

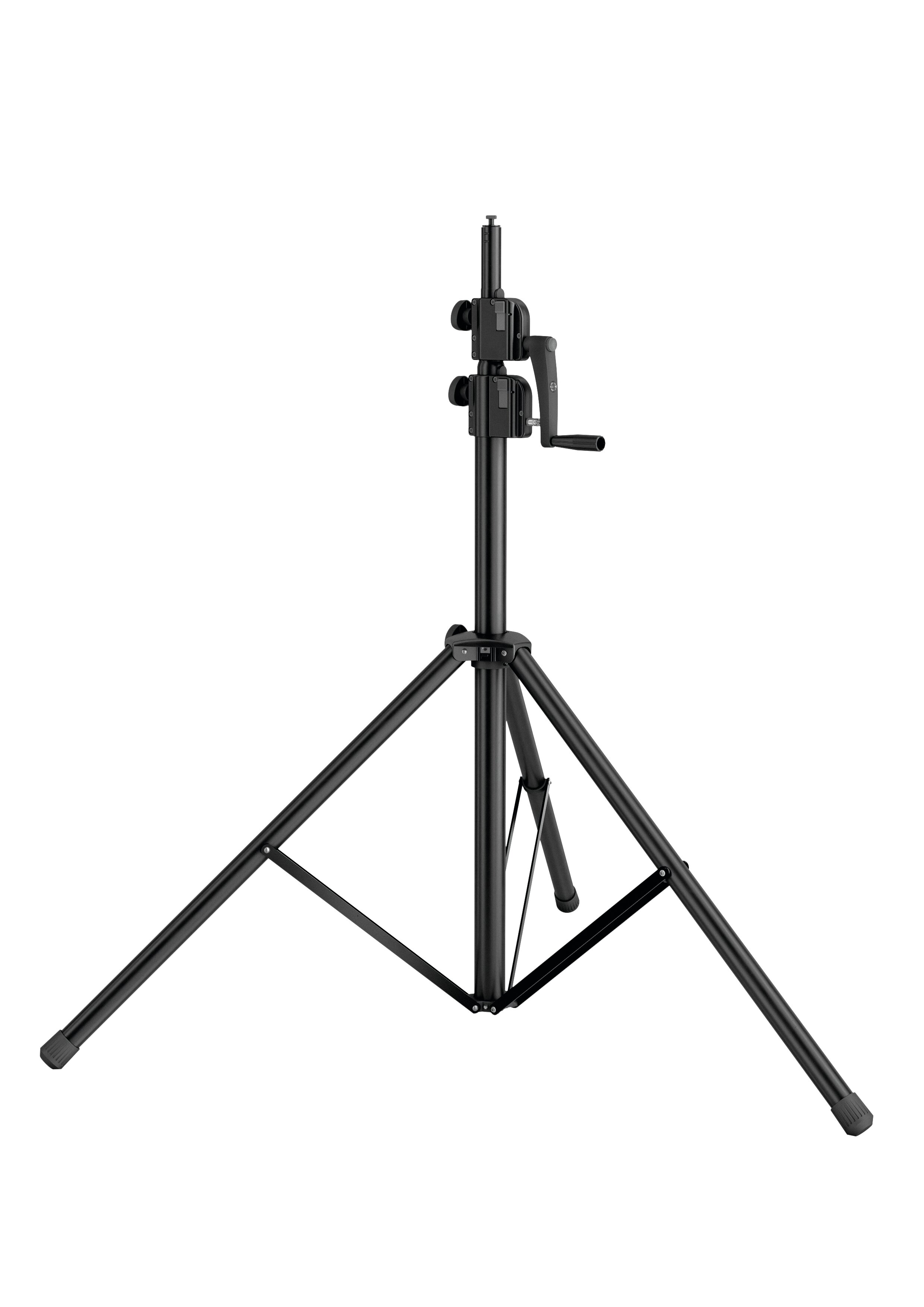

24730 Wind-up stand »3000«

To be able to use König & Meyer in full range, we recommend activating Javascript in your browser.

Article successfully added.

Product variant 24730-000-55 - black

Order number: 24730-000-55
Open text field 1: 24730

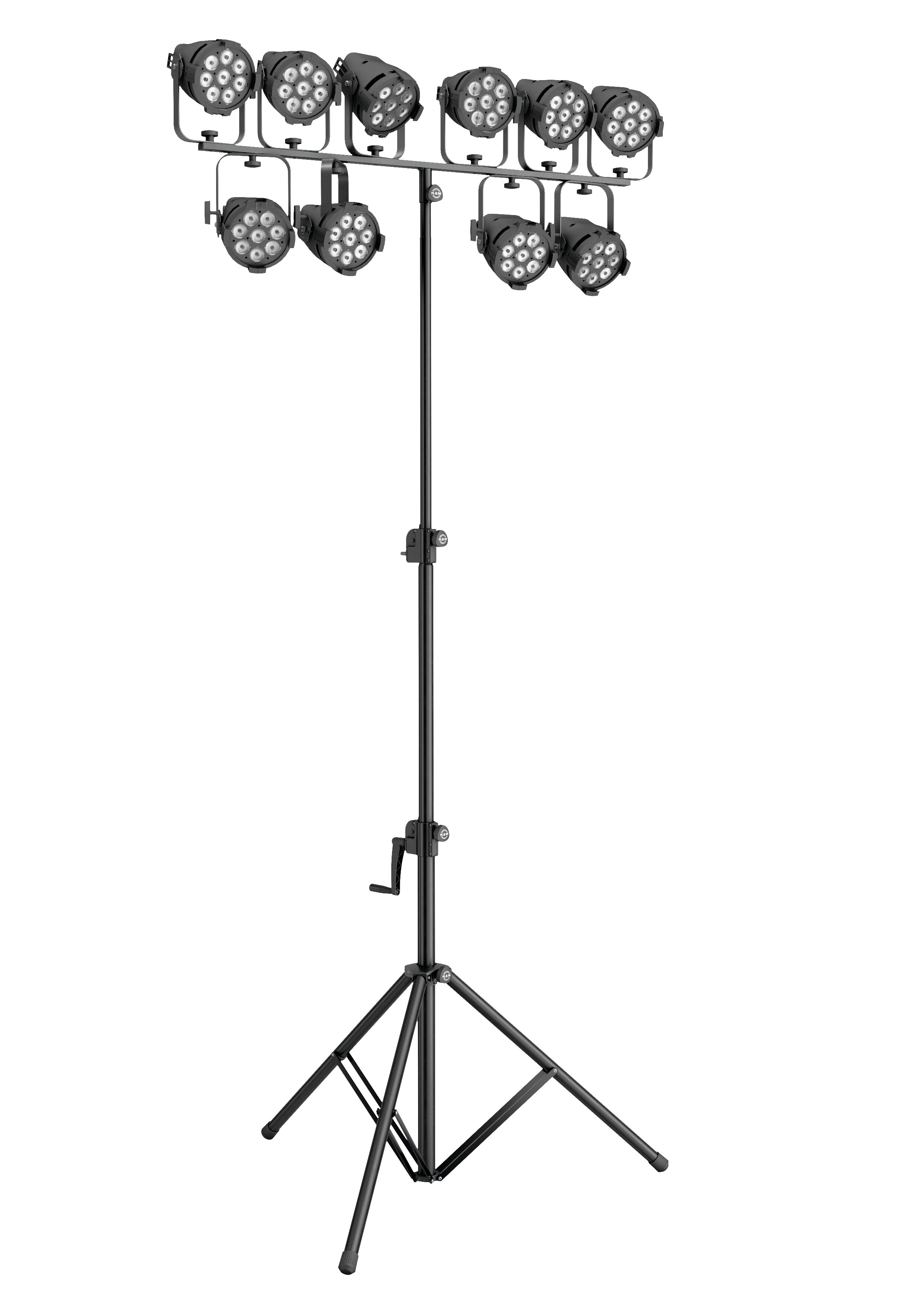

Professional light and speaker stand with an innovative dual crank mechanism. A low base height of 1,405 mm ensures easy, ergonomic positioning of the load. The 3-piece tube combination reaches a height of 3 meters. Lifting and lowering the load is user-friendly, safe and reliable via two separate crank gears. The integrated »Auto Lock« system prevents sudden lowering of the load by automatic locking. The crank can also be removed to prevent unauthorised use. Since no cables are needed, the stand is completely maintenance-free. The robust stand focuses on stability and steadiness, so that the 5° stability test according to DIN 56950-3 with a load capacity of 40 kg is easily realised. The compact transport dimensions are 1,390 x 200 x 165 mm and the weight is approx. 12.0 kg. The integrated M10 threaded bush allows additional trusses or individual spotlights to be mounted directly.

Product data

Base diameter:

1,550 mm

EAN:

4016842117062

Weight:

12.4 kg

Height:

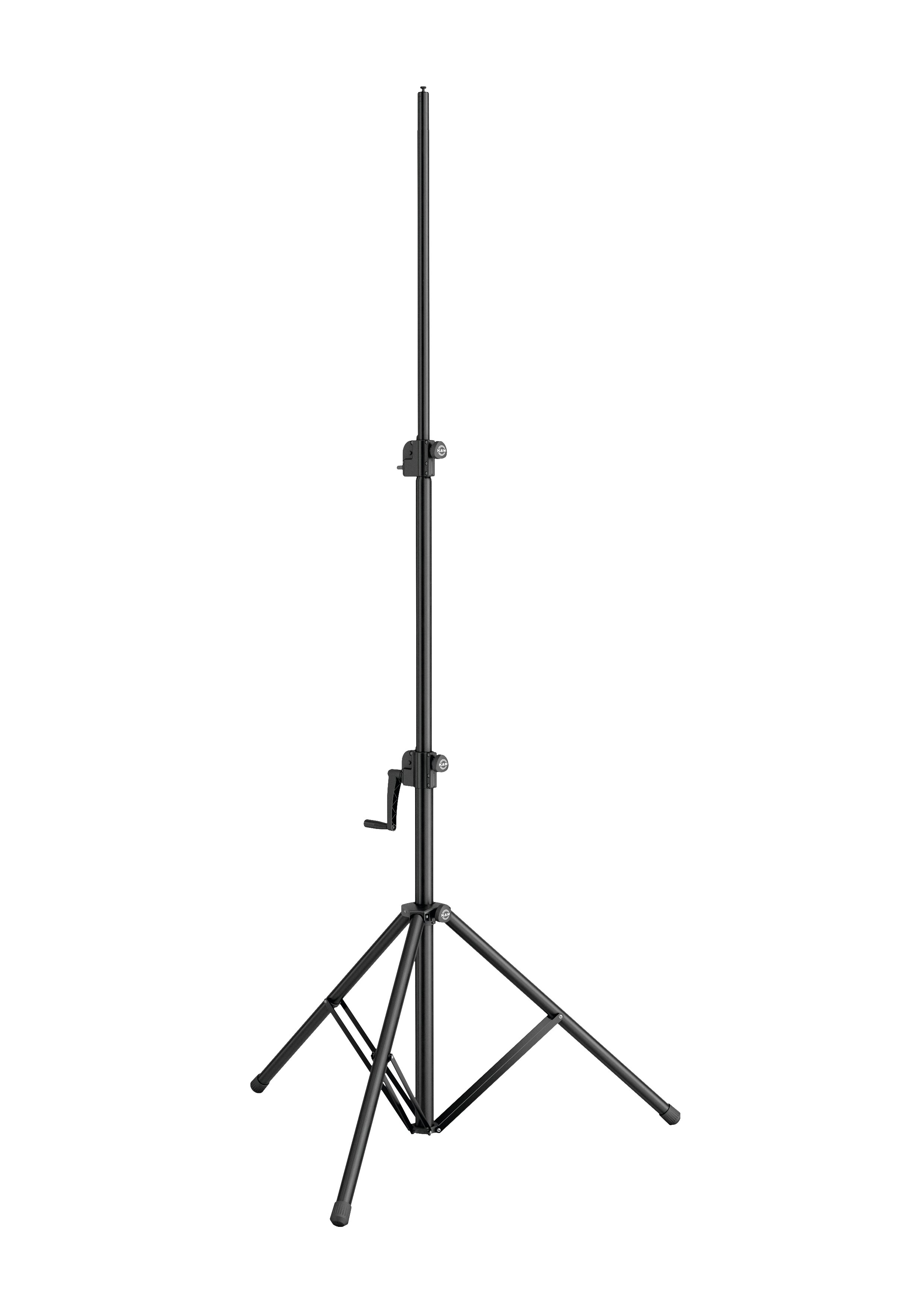

from 1,405 to 3,000 mm

Height adjustment:

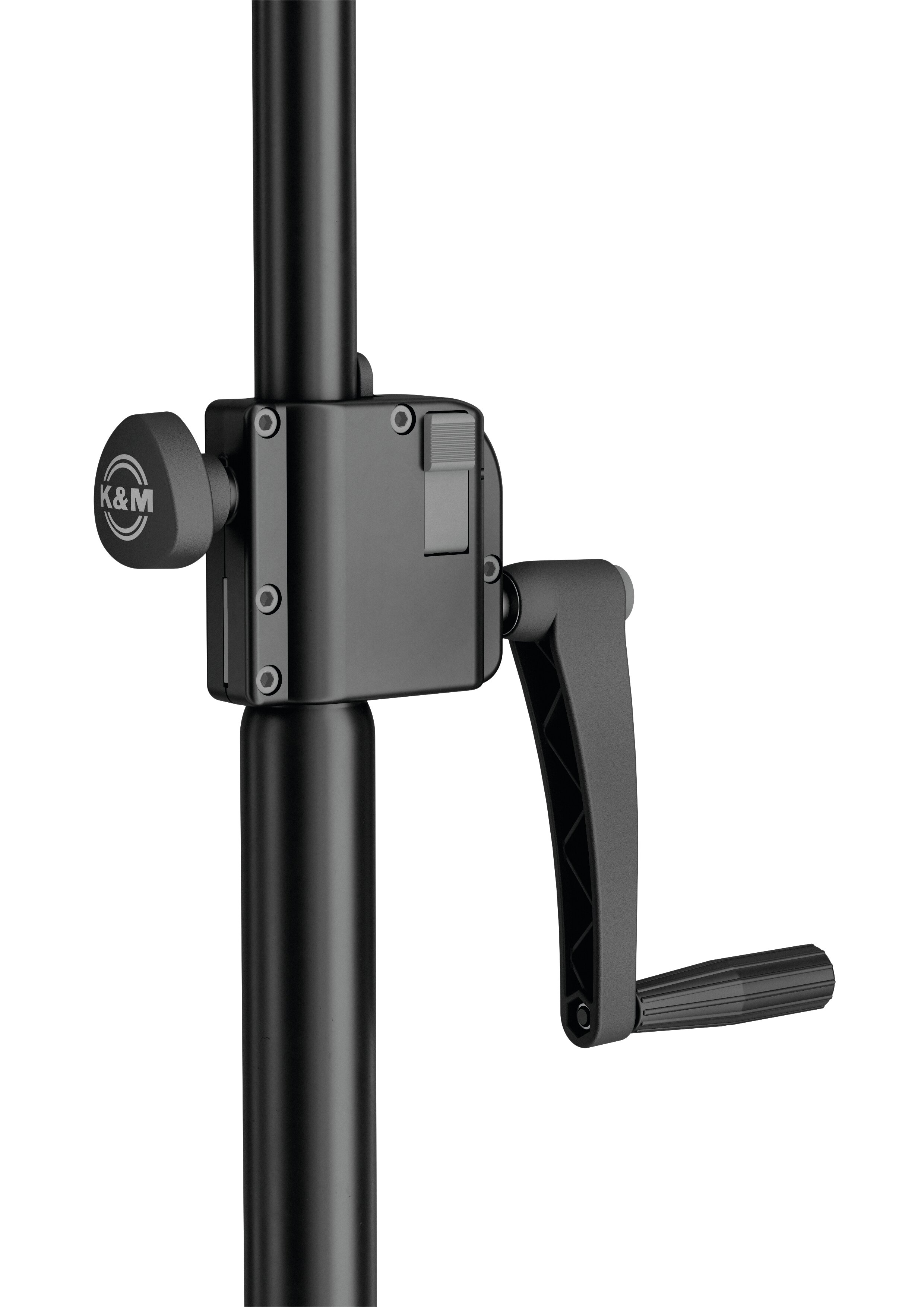

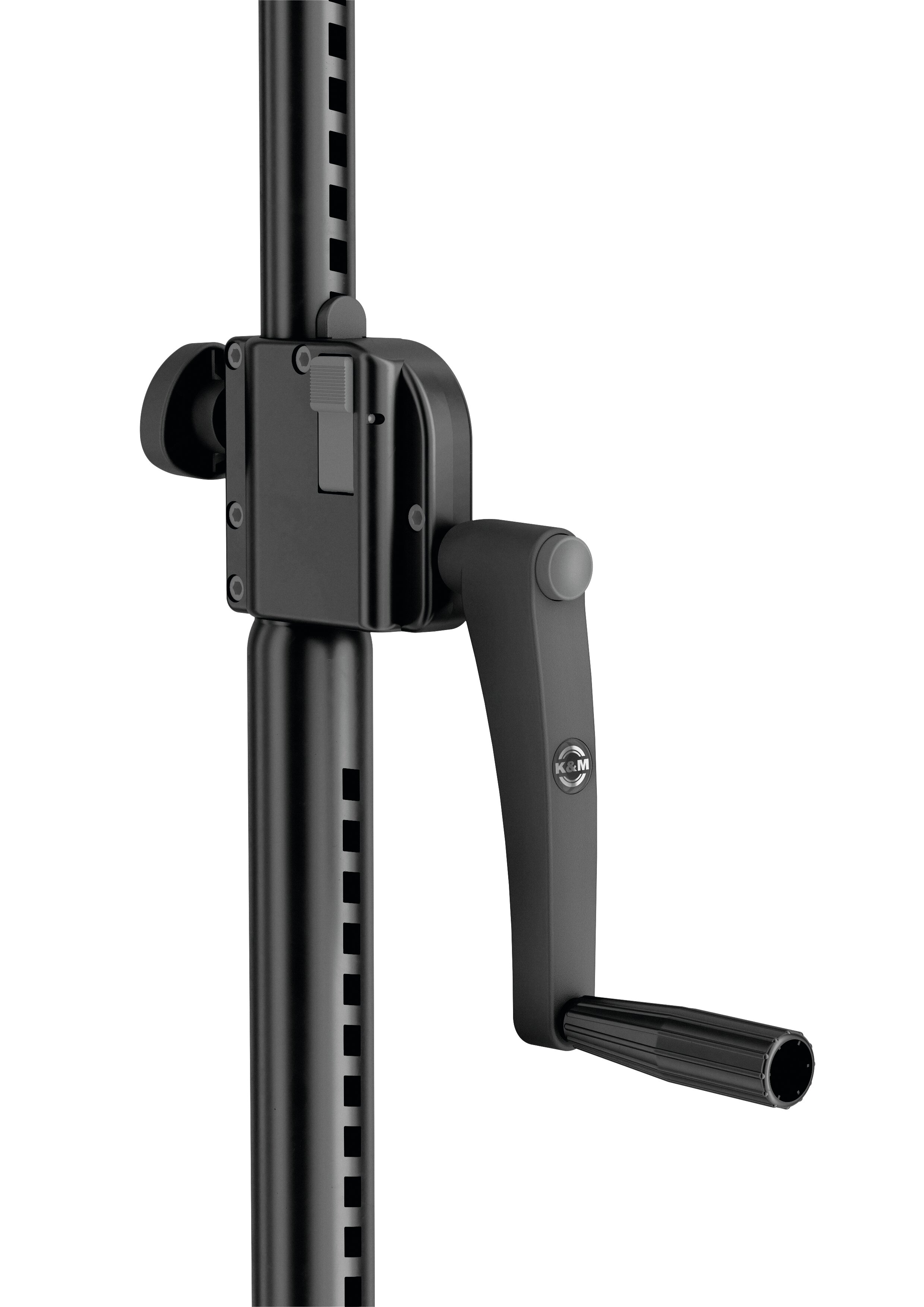

hand crank with push-button system and locking screw

Leg construction:

tube legs with double cross braces

Material:

aluminum

Max. load capacity*:

40 kg

Number of legs:

Quality level:

Starline

Rod combination:

3-piece folding design

Size when folded:

1,390 x 200 x 165 mm

Tube end(s):

diameter 35 mm, integrated threaded bush M10 for crossbars

Type:

black

Special features:

steel extension tubes; push-button system and hand crank avoid uncontrolled reverse motion; locking screw provides additional safety; zinc die-cast connecting parts

* With centric loading, on a horizontal surface and without lateral forces (wind, shocks etc.)
