NEW

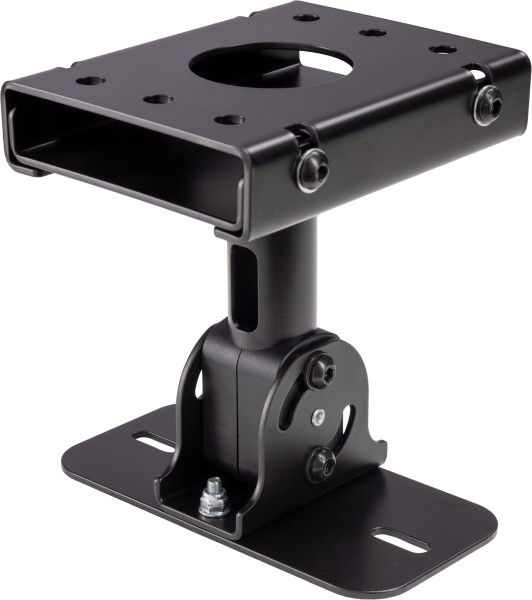

19420 Speaker ceiling mount

The speaker ceiling mount allows equipment to be installed on a ceiling. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking. Direct fit: DBR15, DBR12, DBR10, ... more
Product variant 19420-000-55 - black
  • 19420-000-55
  • 19420

The speaker ceiling mount allows equipment to be installed on a ceiling. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking.
Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket:  DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10

Product data

The speaker ceiling mount allows equipment to be installed on a ceiling. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking.
Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket:  DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10

Adjustment:

continuous

Angle of inclination:

0° bis 75°

Bearing plate:

180 x 90 mm

Ceiling clearance:

180 mm

Ceiling mounting plate:

160 x 126 mm

EAN:

4016842122998

Weight:

2.2 kg

Material:

steel

Max. load capacity:

25 kg

Mounting:

attaches to ceilings

Spacing of holes:

60 - 70 mm or 115 - 150 mm

Swivel:

90°

Type:

black

Special features:

Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
