24496 Speaker ceiling mount
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. The clamping bracket is for loudspeakers with a vertical mounting template from 70 to 76.2 mm. For other ... more
Product variant
24496-000-55 - black
- Order number: 24496-000-55
- Open text field 1: 24496
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. The clamping bracket is for loudspeakers with a vertical mounting template from 70 to 76.2 mm. For other attachment possibilities additional adapter brackets are available. A mounting bracket with side and central cable management makes mounting to the ceiling easier.
Product data
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. The clamping bracket is for loudspeakers with a vertical mounting template from 70 to 76.2 mm. For other attachment possibilities additional adapter brackets are available. A mounting bracket with side and central cable management makes mounting to the ceiling easier.
Adjustment:
continuous
Angle of inclination:
0° to 45°
Bearing plate:
90 x 47 mm
Ceiling clearance:
250 mm

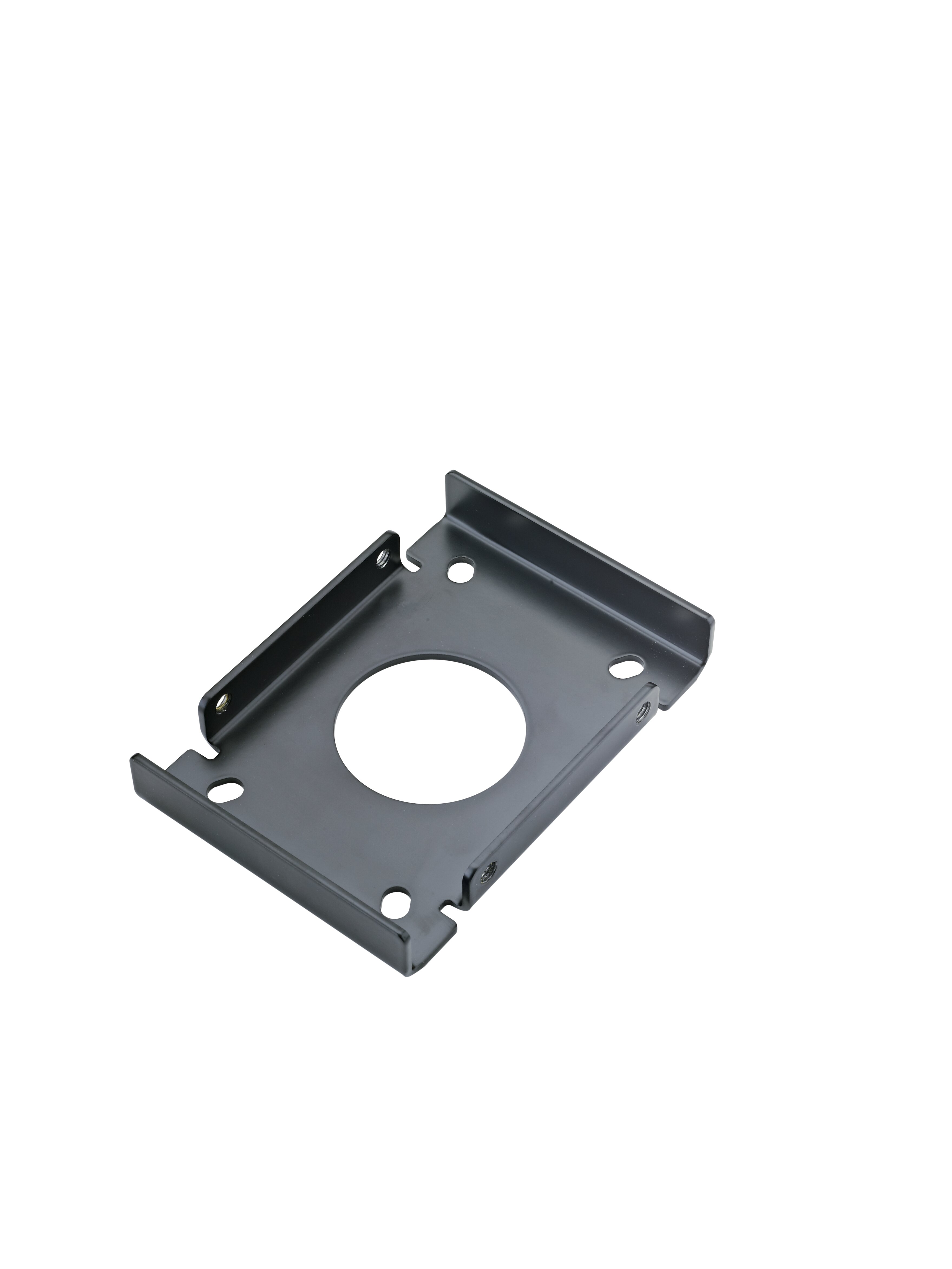

Ceiling mounting plate:
160 x 118 mm
EAN:
4016842827886
Weight:
1.79 kg
Material:
steel
Max. load capacity:
25 kg
Mounting:
attaches to ceilings
Spacing of holes:
from 70 to 76.2 mm
Swivel:
90°
Type:
black
Special features:
easy mounting by convenient hooking in and screw locking; internal cable management
